M10 Ammor Trailer Detailed Techical Pictures.

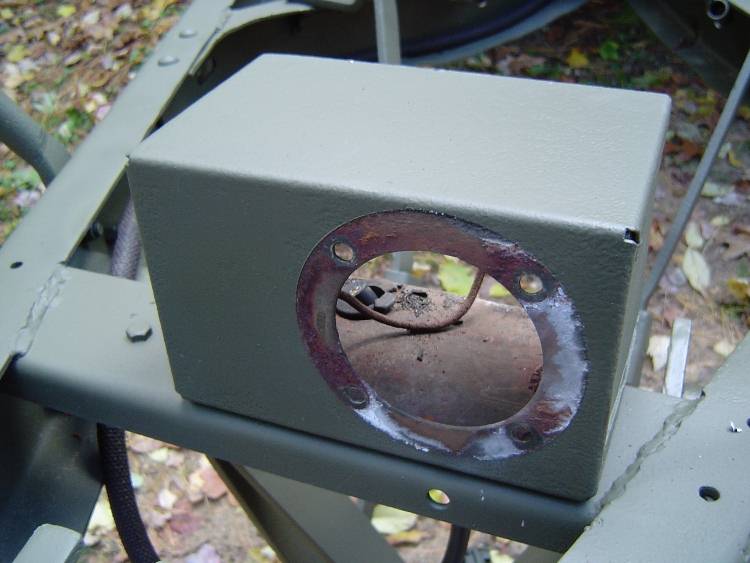

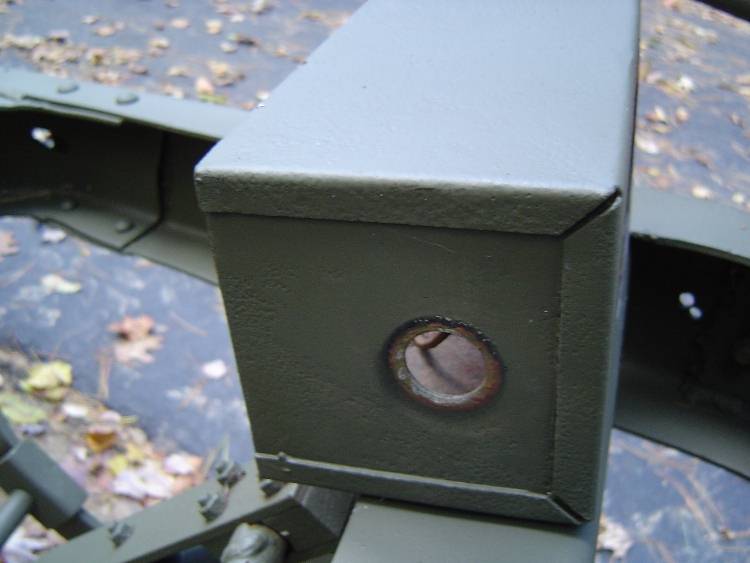

Box is 7 inches wide, 4 1/2 inches high, and 4 1/2 inches deep

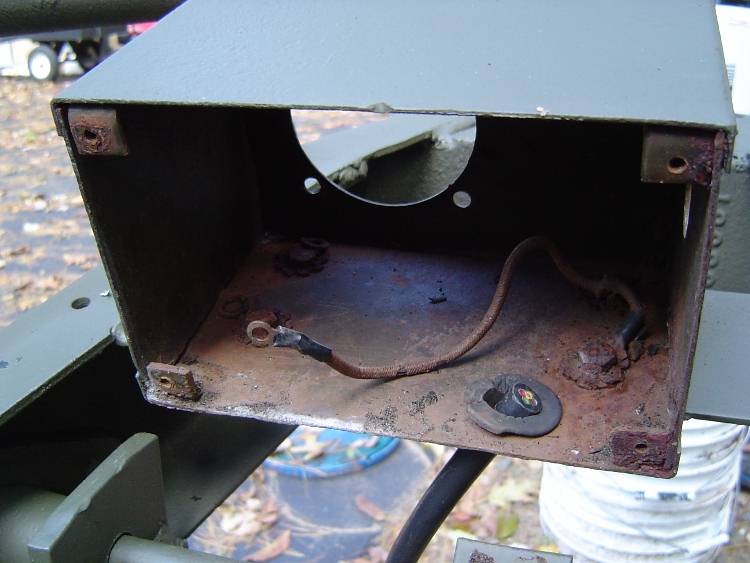

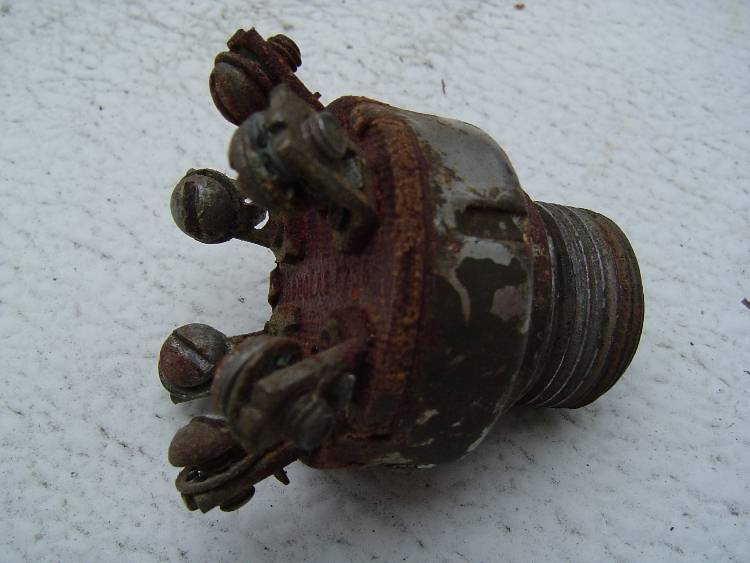

  M-10 uses a 6 pin BO switch rather than the Ben Hur 2 pin switch

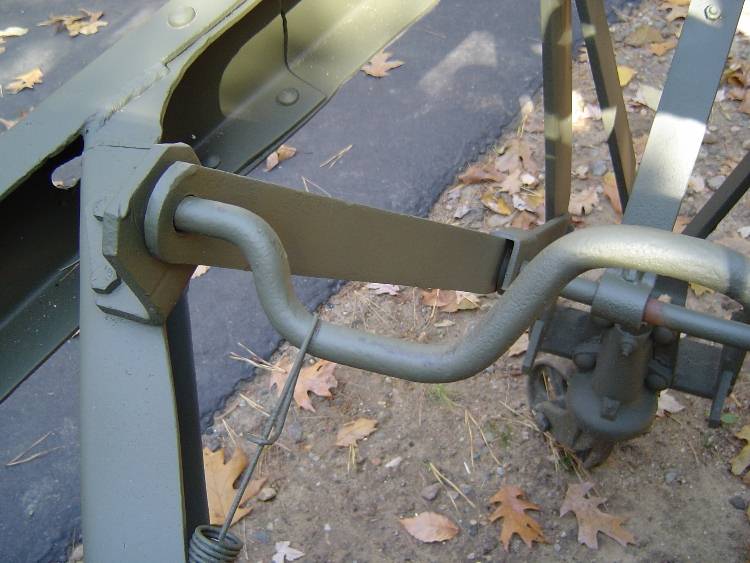

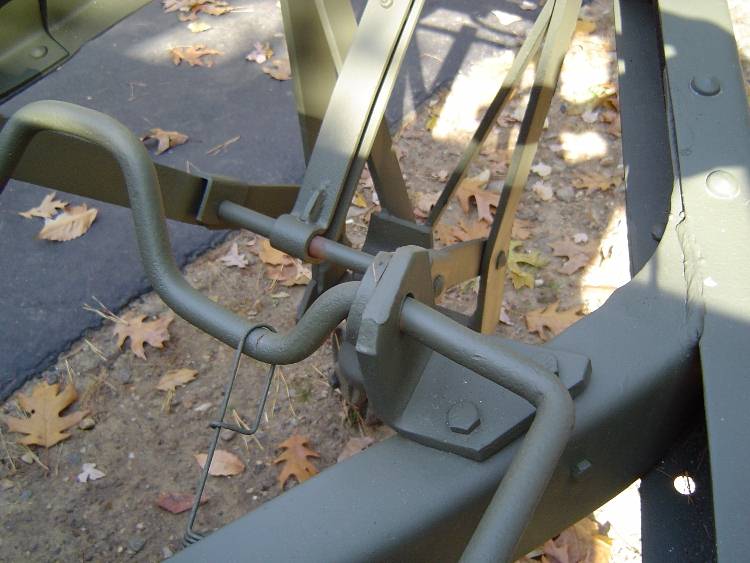

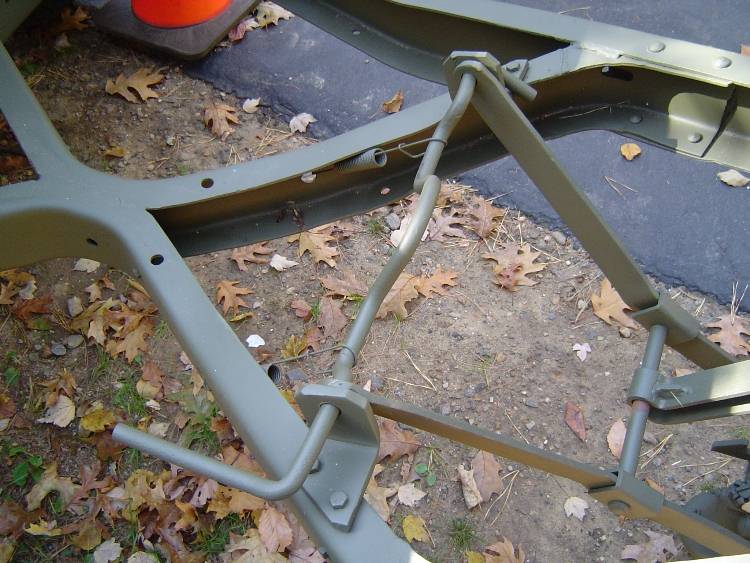

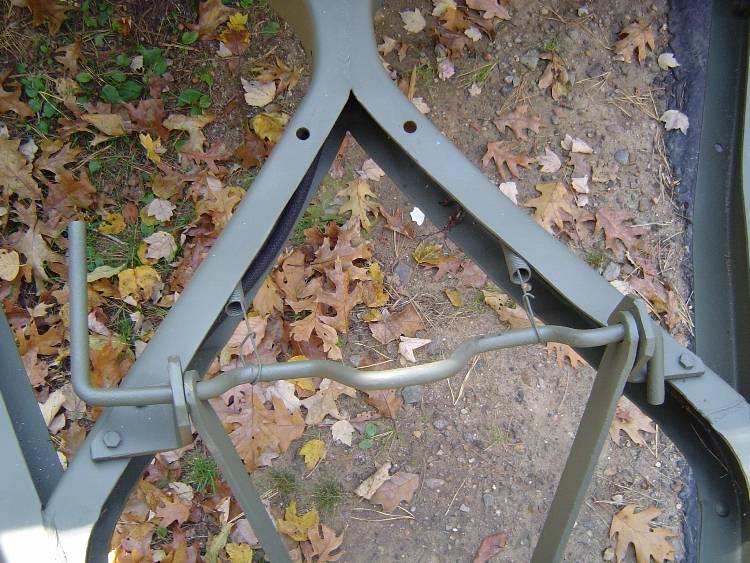

This is the bent 3/4 diameter steel rod used as a lock to keep the landing wheel up when towing.

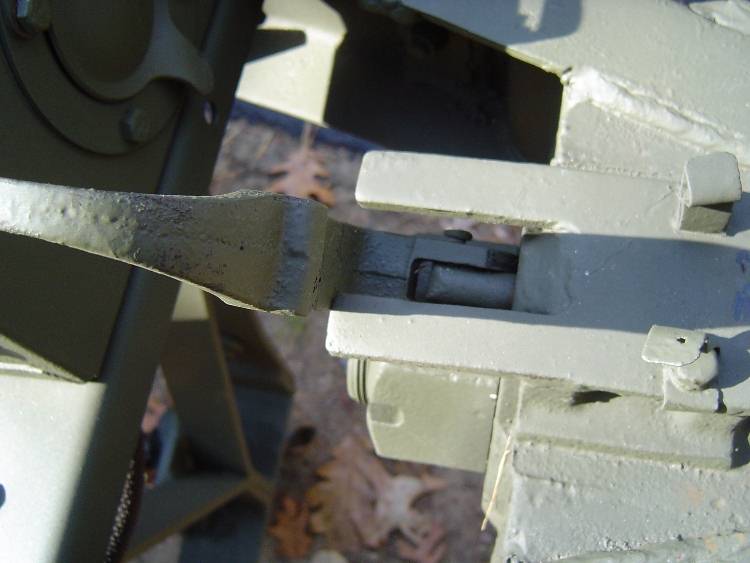

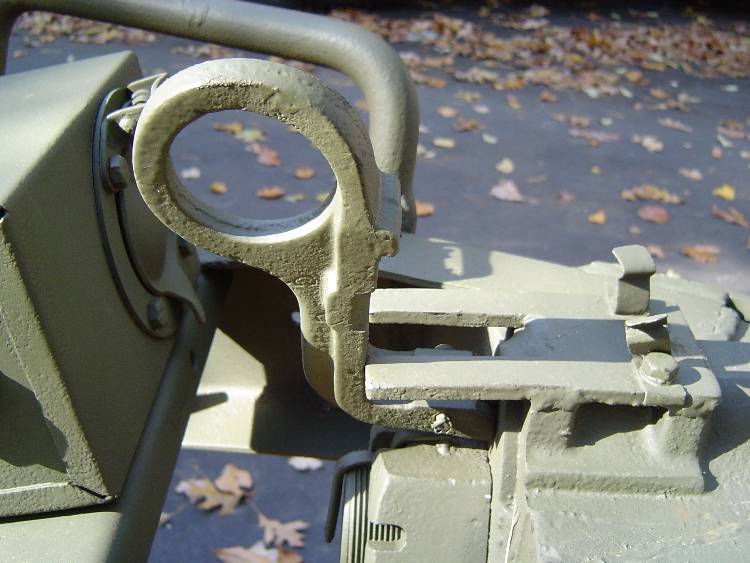

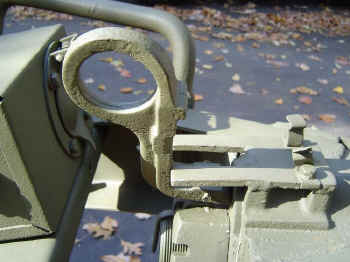

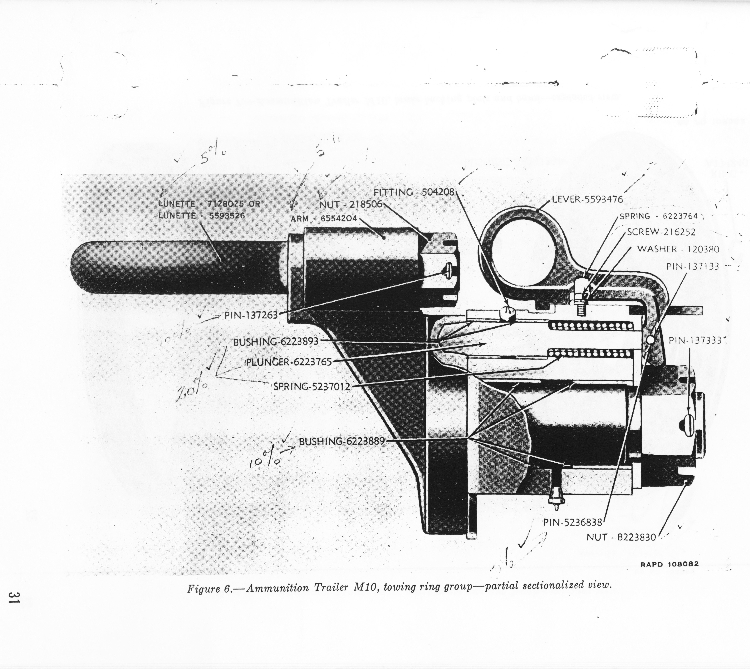

These are pictures of the lever/lock that is used to pull the pin back that changes ring height
