Tire Rack Plans

Click here to view a great Flash Video and song as a tribute to our WWII vets.

Here is a set of spare tire rack plans that have been graciously made available. The plans were developed by Roy Hamilton and were offered to the group by Richard Curtin. Many Thanks to both. This Rack was used on trailers that were towed by vehicles other than Chevy or GMC trucks. Since a Dodge or other towing vehicle did not use the same tire as the trailer the rack enabled the trailer to carry a matching spare tire. (Note that the box pieces on the outside were added after to protect civilian tail lights) Rack is owned by the webmaster

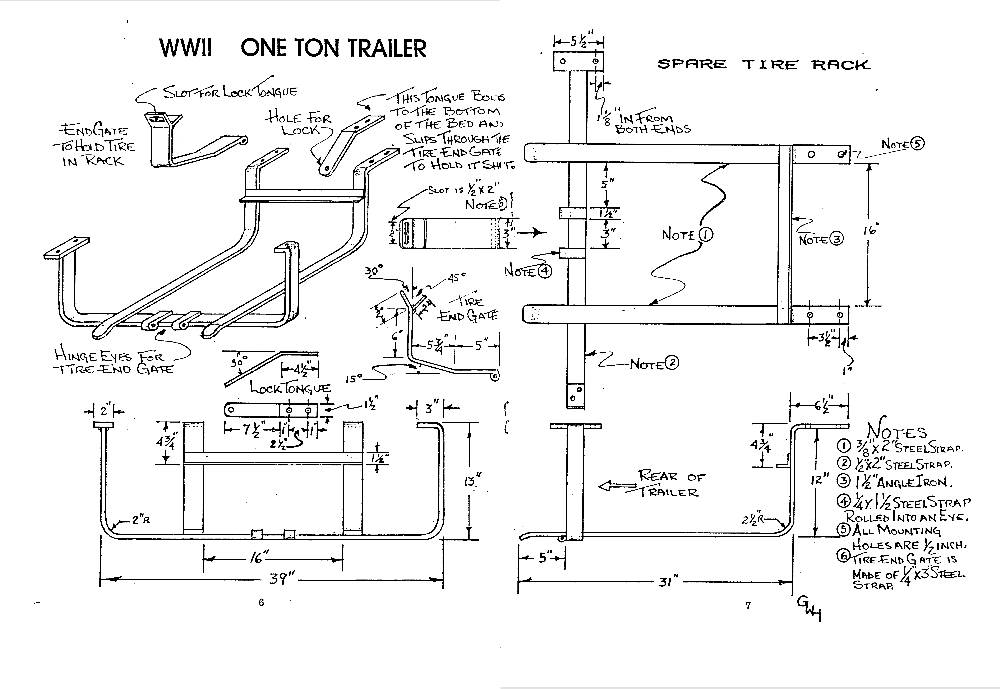

Plans for the above rack are available below on 2 pages so they can easily be printed on your printer
Tire Rack plans pg 1	Tire Rack plans pg 2
Ben Hur Tire Rack construction hints
